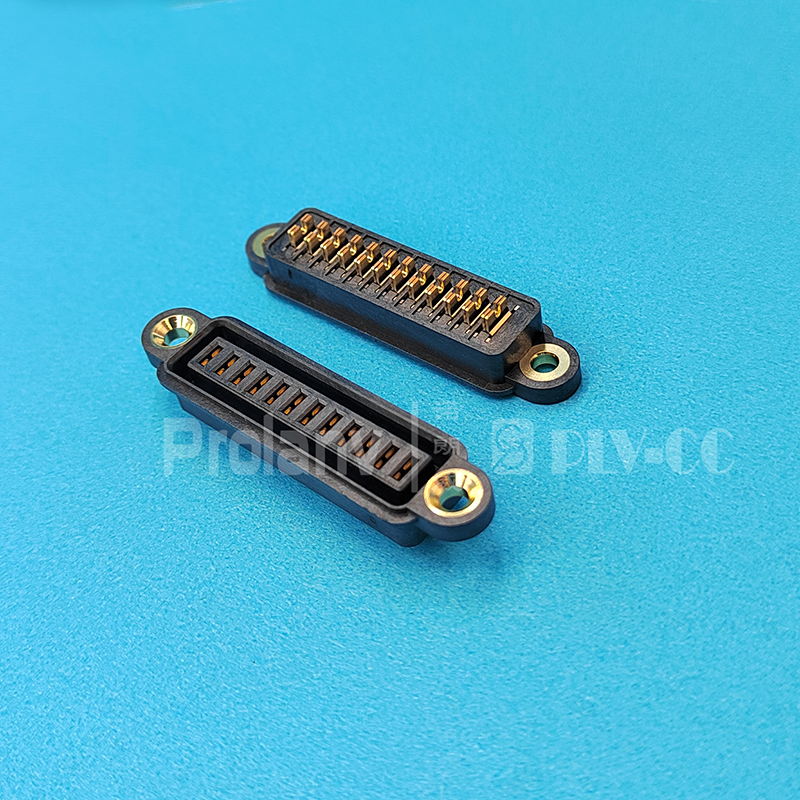

| Mini blade Power Female. 12PW H8.0mm, Straight Type | 2025' Improved Version | |
| 迷你刀片大电流连接器母座 12组电源 直立式 | 2025' 升级版本 | |
| 电压 Voltage rating | 50VDC. |
| 电流 Current rating | 20A/Per Power Pin |
| 接触阻抗 Contact resistance | 0.5mΩ max. Initial |
| 耐久 Durability Life | 3,000 cycles. |
| 应用提示 FAE Tips | +6PW/-6PW 120A max. |
| Signal' Flexible setting自由设定 | |
| 工作温度 Working Temps | -40°C~125°C. |
| 应用领域 Application Field | UAV/Robot/IE… |
| Mini blade Power Female. 12PW H8.0mm, Straight Type | 2025' Improved Version | |
| 迷你刀片大电流连接器母座 12组电源 直立式 | 2025' 升级版本 | |
| 电压 Voltage rating | 50VDC. |
| 电流 Current rating | 20A/Per Power Pin |
| 接触阻抗 Contact resistance | 0.5mΩ max. Initial |
| 耐久 Durability Life | 3,000 cycles. |
| 应用提示 FAE Tips | +6PW/-6PW 120A max. |
| Signal' Flexible setting自由设定 | |
| 工作温度 Working Temps | -40°C~125°C. |
| 应用领域 Application Field | UAV/Robot/IE… |
