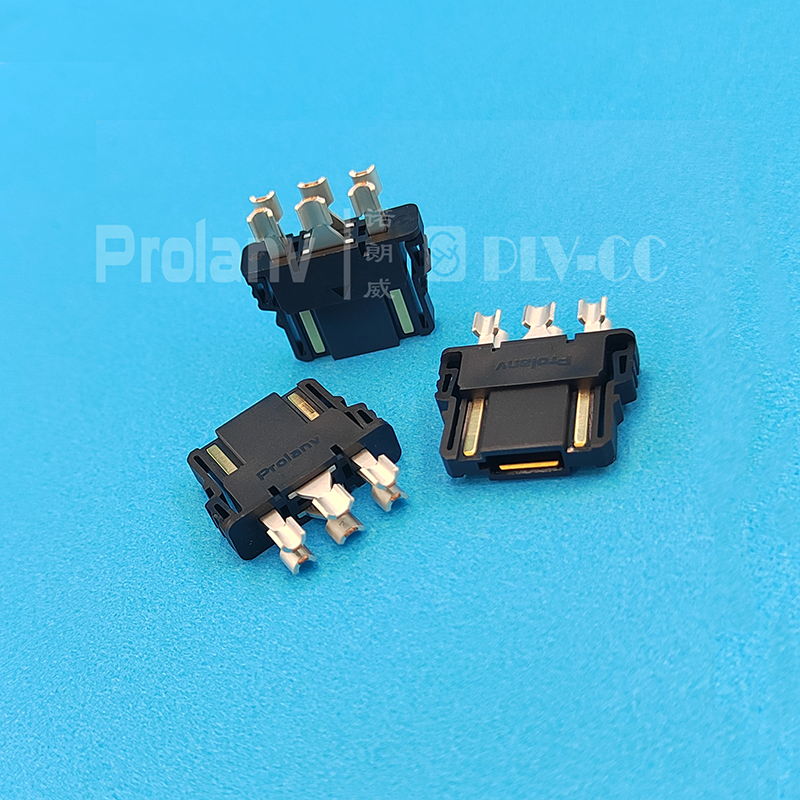

| Mini Power Male. 2PW+4S, Wire-harness Type | Patent | |
| 迷你大电流公座 2组电源 4个信号.焊线式 | 抗振.自锁定.专利结构 | |
| 电压 Voltage rating | 100VDC max. |
| 电流 Current rating | 35A max. |
| 接触阻抗 Contact resistance | 1.0mΩ max. Initial |
| 耐久 Durability Life | 2,000 cycles. |
| 应用提示 FAE Tips | +1PW/-1PW 35A max. |
| 14-18AWG cable | |
| 工作温度 Working Temps | -40°C~125°C. |
| 应用领域 Application Field | UAV/Robot/IE… |
| Mini Power Male. 2PW+4S, Wire-harness Type | Patent | |
| 迷你大电流公座 2组电源 4个信号.焊线式 | 抗振.自锁定.专利结构 | |
| 电压 Voltage rating | 100VDC max. |
| 电流 Current rating | 35A max. |
| 接触阻抗 Contact resistance | 1.0mΩ max. Initial |
| 耐久 Durability Life | 2,000 cycles. |
| 应用提示 FAE Tips | +1PW/-1PW 35A max. |
| 14-18AWG cable | |
| 工作温度 Working Temps | -40°C~125°C. |
| 应用领域 Application Field | UAV/Robot/IE… |
