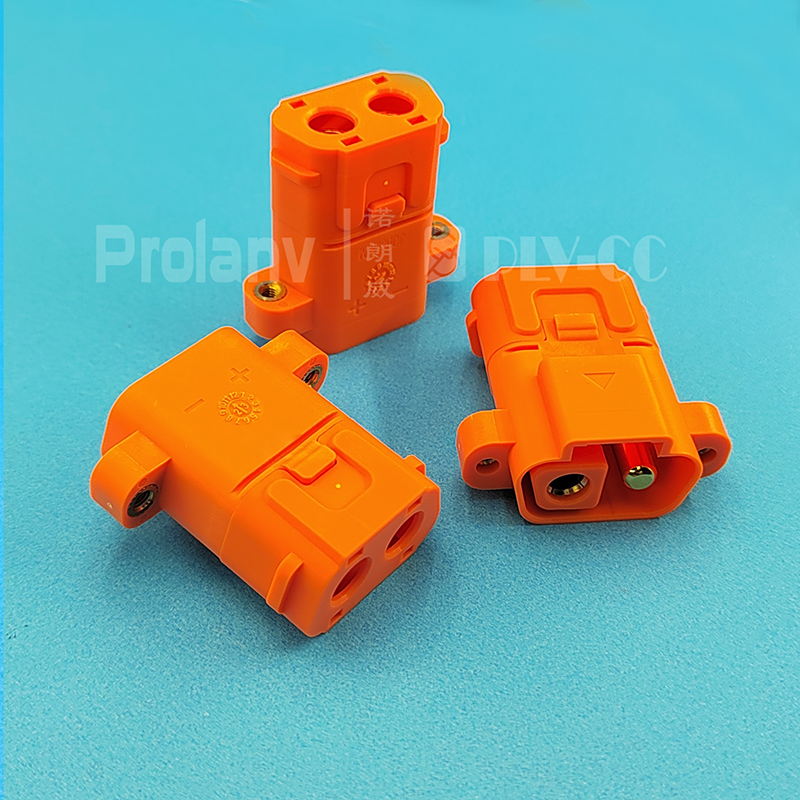

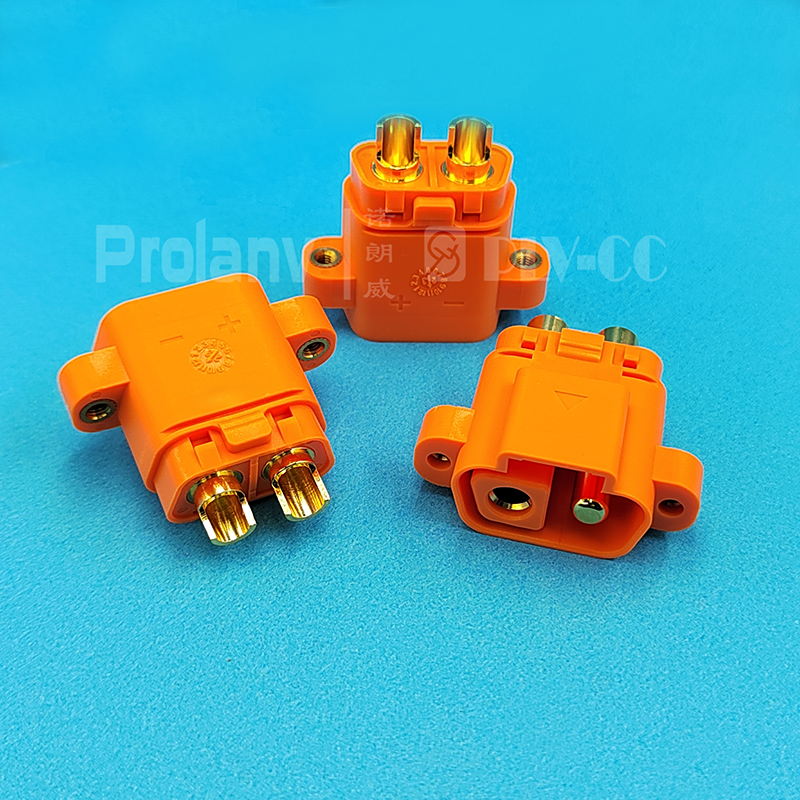

| AT80 Needle Power Conn. 2PW | Inhibit inrush current | Patent | |
| AT80针式大电流连接器 2组电源 | 抑制涌流 | 专利结构 | |
| 电压Voltage rating | 200VDC max. |
| 电流Current rating | 80A/Per Pin |
| 接触阻抗Contact resistance | 0.8mΩ max. Initial |
| 耐久Durability Life | 2,000 cycles |
| 应用提示 FAE Tips | 8AWG max W/Cover |
| 工作温度Working Temps | -25°C~125°C. |
| 应用领域Application Field | IE/UAV/Robot… |
| 对配规格 Compatible P/N | PAT0110BT002 |
| AT80 Needle Power Conn. 2PW | Inhibit inrush current | Patent | |
| AT80针式大电流连接器 2组电源 | 抑制涌流 | 专利结构 | |
| 电压Voltage rating | 200VDC max. |
| 电流Current rating | 80A/Per Pin |
| 接触阻抗Contact resistance | 0.8mΩ max. Initial |
| 耐久Durability Life | 2,000 cycles |
| 应用提示 FAE Tips | 8AWG max W/Cover |
| 工作温度Working Temps | -25°C~125°C. |
| 应用领域Application Field | IE/UAV/Robot… |
| 对配规格 Compatible P/N | PAT0110BT002 |
