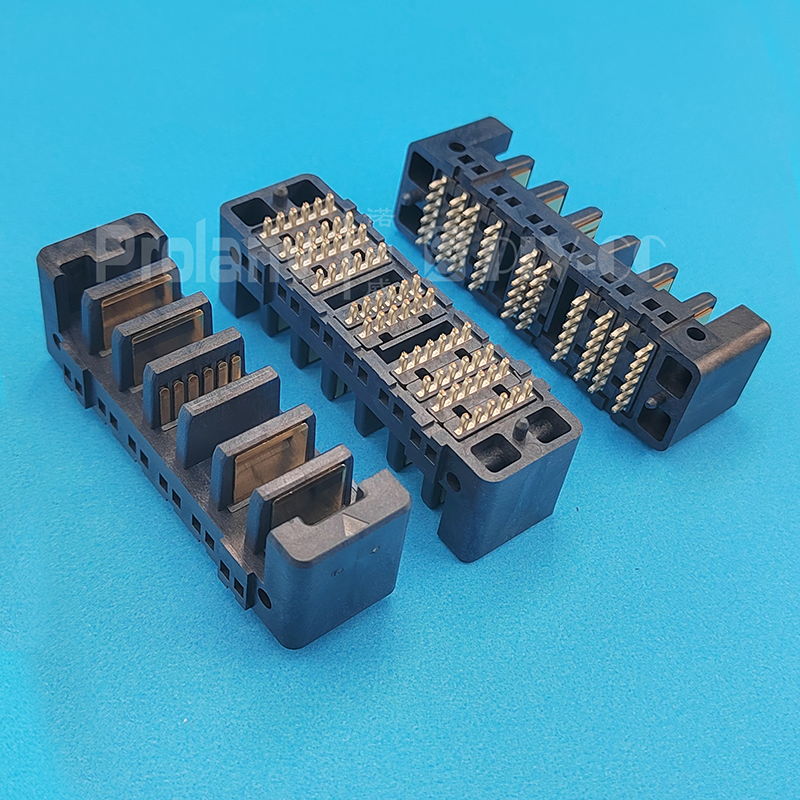

| EX150A Power Male 4PW+12S Water-proof Type | Patent | |
| EX150A 刀片电源公座 4组电源+12个信号 防水式 | 专利结构 | |
| 电压Voltage rating | 600VDC max. |
| 电流Current rating | 150A/Per Power Pair |
| 接触阻抗Contact resistance | 0.5mΩ max. Initial |
| 耐久Durability Life | 5,000 cycles max. |
| 适用压接工艺Press Fit | Yes |
| 应用提示 FAE Tips | +2PW/-2PW 300A. |
| 工作温度Working Temps | -40°C~125°C. |
| 应用领域Application Field | IE/UAV/Robot… |
| EX150A Power Male 4PW+12S Water-proof Type | Patent | |
| EX150A 刀片电源公座 4组电源+12个信号 防水式 | 专利结构 | |
| 电压Voltage rating | 600VDC max. |
| 电流Current rating | 150A/Per Power Pair |
| 接触阻抗Contact resistance | 0.5mΩ max. Initial |
| 耐久Durability Life | 5,000 cycles max. |
| 适用压接工艺Press Fit | Yes |
| 应用提示 FAE Tips | +2PW/-2PW 300A. |
| 工作温度Working Temps | -40°C~125°C. |
| 应用领域Application Field | IE/UAV/Robot… |
