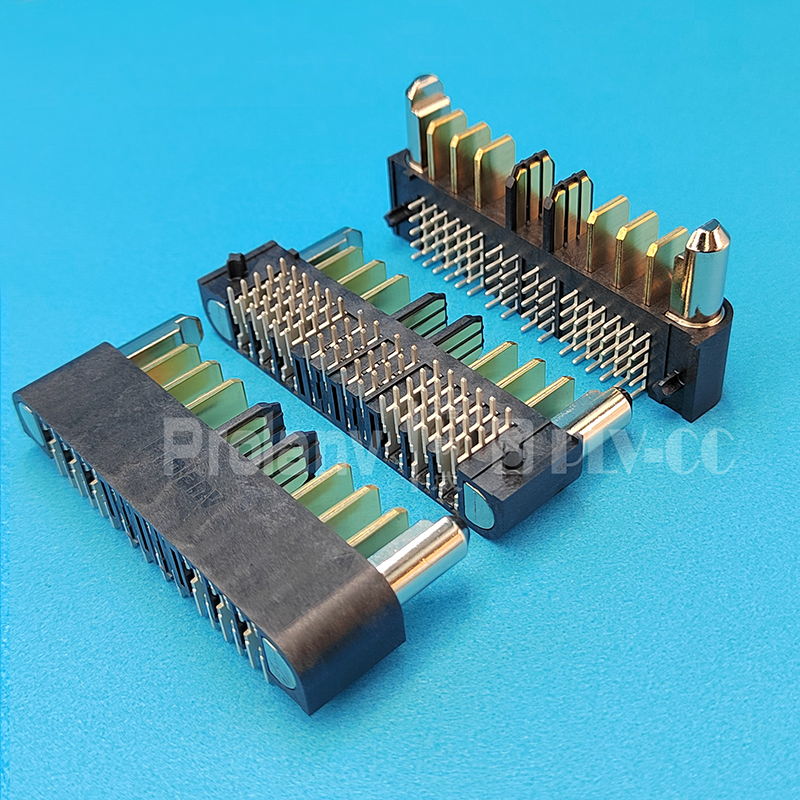

| EN60A blade Power Male 6PW+12S R/A DIP Type | Patent structure | |
| EN60A 刀片电源公座 6组电源+12个信号 折弯插板式 | 专利结构 | |
| 电压Voltage rating | 250VDC max. |
| 电流Current rating | 60A/Per Power Pair |
| 接触阻抗Contact resistance | 0.6mΩ max. Initial |
| 耐久Durability Life | 10,000 cycles max. |
| 适用压接工艺Press Fit | No |
| 应用提示 FAE Tips | +3PW/-3PW 180A. |
| 工作温度Working Temps | -40°C~125°C. |
| 应用领域Application Field | UAV/Robot/IE… |
| EN60A blade Power Male 6PW+12S R/A DIP Type | Patent structure | |
| EN60A 刀片电源公座 6组电源+12个信号 折弯插板式 | 专利结构 | |
| 电压Voltage rating | 250VDC max. |
| 电流Current rating | 60A/Per Power Pair |
| 接触阻抗Contact resistance | 0.6mΩ max. Initial |
| 耐久Durability Life | 10,000 cycles max. |
| 适用压接工艺Press Fit | No |
| 应用提示 FAE Tips | +3PW/-3PW 180A. |
| 工作温度Working Temps | -40°C~125°C. |
| 应用领域Application Field | UAV/Robot/IE… |
